Gepon onu 2 + wifi +catv xpon onu 1 Pon port onu supply fttx solutions
Basic Characteristics:
| Tech parameters | description |
| Up-link interface | | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC | Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 8 pcs |
| DC supply interface | input+12V 1A |
| Power | ≤7W |
| Operating temperature | -5~+55ºC |
| Humidity | 10~85%(non-condensation) |
| Storage temperature | -30~+70ºC |
| Dimension(MM) | 167*119*32mm(mainframe) |
| Weight | 0.6Kg(mainframe) |
PRODUCT DESCRIPTION:
Description:

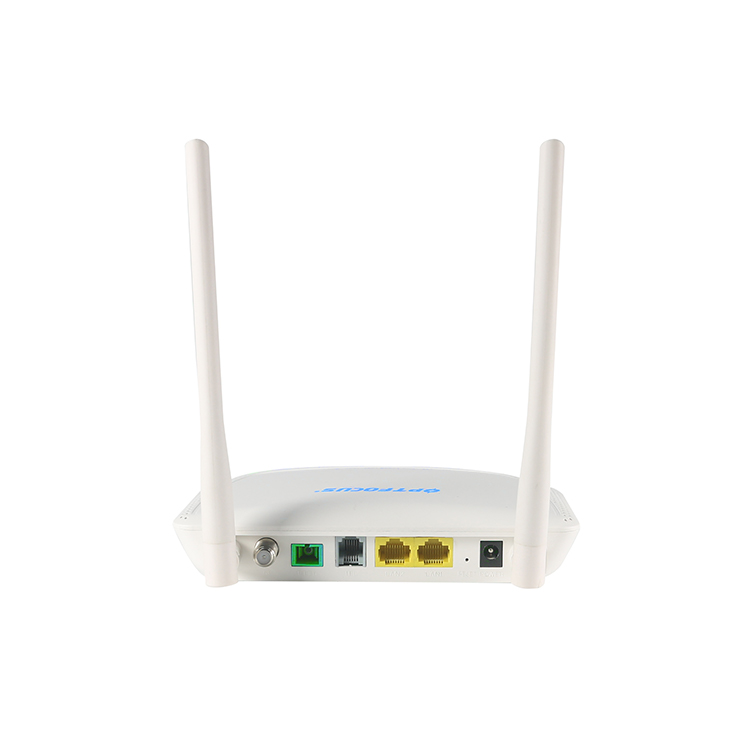

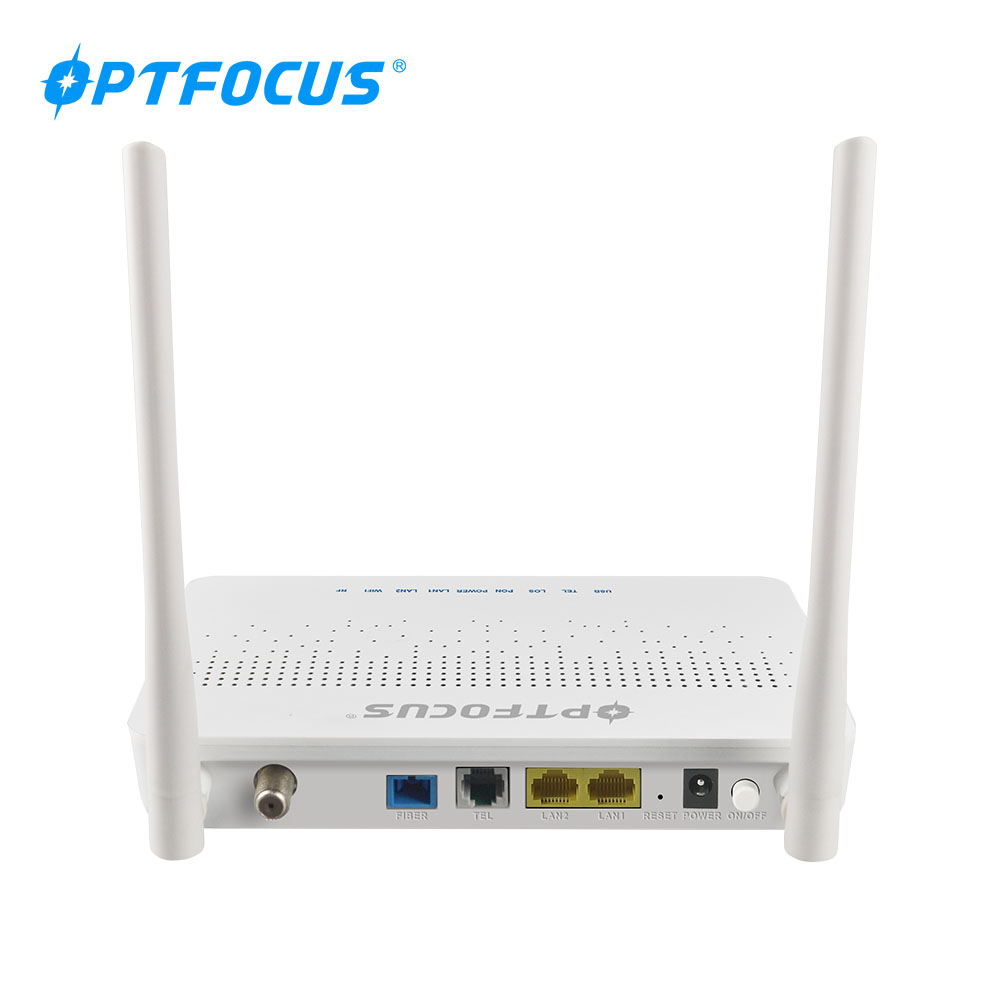

OFSX622-CVW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
OFSX622-CVW
1GE+1FE Ethernet ports with Wifi VOIP WDM CATV XPON ONU for FTTH solution
WIFI CHARACTERISTICS:
| Tech Features | Description |
| Antenna | 2T2R Mode 5DBI GAIN, frequency:2.4G |
| Rate | 300Mbps PHY rate |
| Encryption | WFA, WPA, WPA2, WAPI |
CATV TECHNICAL FEATURES:
| Tech Features | description |
| optical Wavelength | 1540-1560nm |
| optical input range | 0-15dbm |
| optical return loss | No less than 45db |
| Bandwidth | 45-1000Mhz |
| Flatness | +-1db |
| RF output level | no less than 72dbuv |
| AGC control range | 0~-14 dbm |
| RF out put return loss | no less than 14db |
| Output impedance | 75 ohm |
| CNR | No less than 50db |
| CTB | No less than 60db |
| CSO | No less than 60db |
VOIP Technical feature:
| Tech features | description |
| Voltage and Current Monitoring | The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
| Power Monitoring and Power Fault Detection | The XPON ONU monitoring functions are used to continuously protect against excessive power conditions |
| Thermal Overload Shutdown | If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down |
FEATURE:
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Completely compatible with both GPON and EPON automatically.
l Support triple churning encryption request
l Support VOIP TRUNK
l Support the remote upgrade and download
l Support status detection and fault report
l Support TR069
l Support to configure the work mode at the user port
l Support MDI-MDIX automatic-detection at the user port.
l Support data encryption and decryption
l Support access authentication based on serial number
l Support access authentication based on MAC address
l Support 802.1Q VLAN
l Support rich QinQ VLAN functions and IGMP Snooping
l Support traffic rule to modify the related priority.
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
